ART - Q

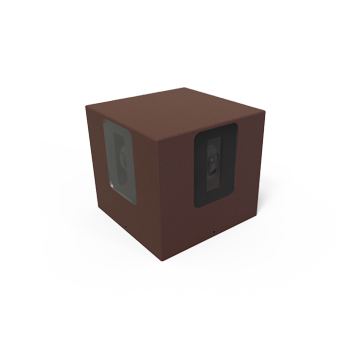

Gamut lighting Art Q is a surface mounted wall luminaire developed to brighten the night using the high performance of the LED light source. The outdoor lighting fixture is designed with aluminum body and more modern look.
Technical data
Print technical data
- IP65
| INSTALLATION | Wall mounted |
|---|---|
| LIGHT SOURCE | LED |
| MOUNTING | Surface Mounted (Wall) |
| LED COLOR | 2700/3000/4000/6000 K, RGB/RGBW |
| IP RATING | IP65 |
| DELIVERED LUMEN |
490 lm/Window |
| RATED POWER | 5W (per window) |
| BEAM ANGLE | 3° |
|---|---|
| BODY MATERIAL | Heavy duty die cast aluminium |
| BODY FINISH | White, Black, Grey |
| LAMP LIFE | 50,000 Hrs |
| CONNECTION | Parallel (supply “P”) |
| DIMENSIONS | 119 X 110 mm |
| WIRING | Junction in supply box |
| SUPPLY VOLTAGE | 110 - 240V AC |
| DRIVER / POWER SUPPLY DETAILS |
ON/OFF DALI 1-10V DMX |
| DIMMING | Non Dimmable, DALI, 1-10V, DMX |
| NOTES |
LED Module : High-power LEDs on metal-core PCB Collimating lens made of optical polymer/pmma |
| OPTIONS |
Diffuser : PMMA Diffuser Electrical Protection : EMC; Inrush current Direction : 4; 3; 2c; 2i; 1 |
